| LCD monitor information | |
| Model Number | AXD-08OPIP-TE4 ( VGA) |

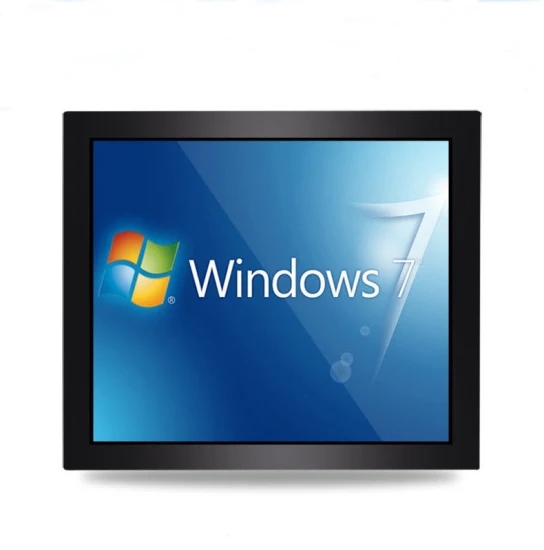

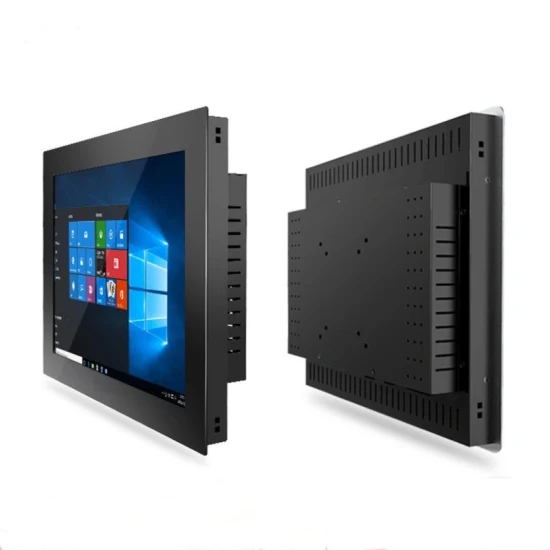

| 8.4” Industrial touch monitor | |
| Type | 8.4 ” TFT Active Matrix LCD with LED Backlight |
| Active Display Area(mm) | 170.4(H)x127.8(V) |
| Pixel Pitch(mm) | 0.213(H)x0.213(V) |
| Resolution | 800 x 600, up to 1024X768 |
| Contrast Ratio | 500:1 (typ.) |
| Display Color | 16.7 M colors |
| Brightness | 450(Typ) |
| Viewing Angles | 140(H);120(V) |
| Response Time | 10ms/15ms |
| Environmental Temperature | |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -30ºC~85ºC |
| Signal Input | |
| PC | RGB analog VGA |
| RGB Frequency | H:31.5~38kHz, V:50~60Hz |
| Power Specification | |
| Voltage Consumption | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| 3.3W typical, normal operation | |
| Dimensions | |
| Construction | Rugged chassis & Black Color |
| Holes fixings | Vesa mounting 75×75, Right Left fixing holes |
| Mechanical dimensions | 223.0 x 158.0x 30.0 (mm) |
| Drawings | Please contact us for details |
