| Display Specifications | |

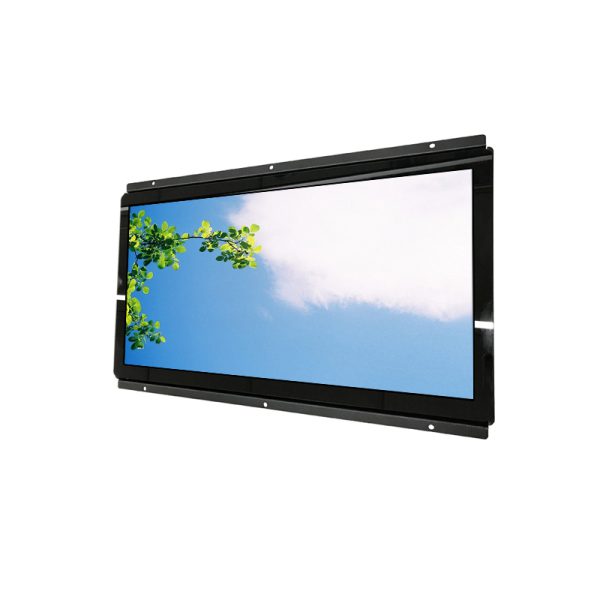

| Display | 15.6″ Color TFT industrial Touch monitor |
| Model Name | AXD-15OPIVHT2-W3 |
| Active Display Area (mm) | 344.16(H)x193.59(V) |
| Pixel Pitch (mm) | 0.1795(H)x0.1795(V) |
| Resolution (Pixel) | 1920×1080 |
| Brightness (CD/m^2) | 500nits |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 178/178 |
| Power consumption | 19.2 W typical, normal operation |
| Touch Screen | Pro-Capacitive touch panel( USB Controller) |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA, 1xHD Digital |
| Power Input | DCJack 12V/4A |
| Mechanical Specifications | |
| Construction | Steel housing with IP front sealing PCAP |
| Dimensions | 381.0x 236.5×40.0(mm) |
| Mounting | Embedded ,up and down; left-right fixing holes, vesa75x75;100×100 Wall Mounting Optional |
| Power source | AC 100~240V/ 12V4A DC |
| Environment Specifications | |
| Operating Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 15.6” industrial LCD open Frame embedded capacitive touch with hd input |
